Product Summary

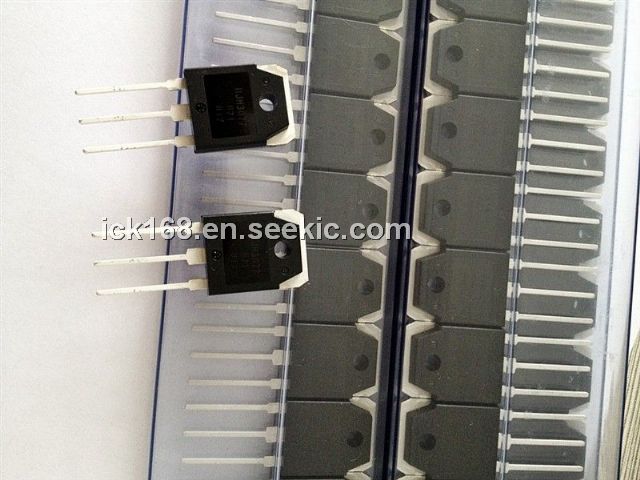

The RJH3077 is a high speed power switching.

Parametrics

RJH3077 absolute maximum ratings: (1)Collector to emitter voltage : 360 V; (2)Gate to emitter voltage : ±30 V; (3)Collector current : 30 A; (4)Collector peak current : 200 A; (5)Collector to emitter diode Forward peak current : 100 A; (6)Collector dissipation : 20 W; (8)Junction to case thermal impedance : 6.25 ℃/W; (9)Junction temperature : 150 ℃; (10)Storage temperature : -55 to +150 ℃.

Features

RJH3077 features: (1)Trench gate and thin wafer technology (G6H-II series); (2)High speed switching: tr =80 ns typ., tf = 150 ns typ; (3)Low collector to emitter saturation voltage: VCE(sat)= 1.5 V typ; (4)Low leak current: ICES = 1 μA max; (5)Built-in Fast Recovery Diode: VF = 1.4 V typ., trr = 23 ns typ; (6)Isolated package: TO-220FL.

Diagrams

RJH3077 dimension
