Product Summary

The KAC-9618 is a high performance, low power, 1/3” VGA CMOS Active Pixel Sensor. The KAC-9618 is capable of capturing grey-scale digital still or motion images and converting them to a digital data stream. In addition to the active pixel array, an on-chip 12 bit A/D convertor, fixed pattern noise elimination circuits, a video gain and separate color gain are provided. Furthermore, an integrated programmable smart timing and control circuit allows the user maximum flexibility in adjusting integration time, active window size, gain and frame rate. Various control, timing and power modes are also provided. The applications of the KAC-9618 include Security Cameras, Machine Vision, Automotive, Biometrics, IR imaging, Barcode Scanners.

Parametrics

KAC-9618 absolute maximum ratings: (1)Any Positive Supply Voltage: 6.5V; (2)Voltage On Any Input or Output Pin: -0.5V to 6.5V; (3)Input Current at any pin (Note 3): ±25mA; (4)ESD Susceptibility (Note 5): Human Body Model 2000V; (5)Machine Model 200V; (6)Package Input Current (Note 3): ±50mA; (7)Package Power Dissipation @ TA(Note 4): 2.5W; (8)Soldering Temperature Infrared, 10 seconds (Note 6): 220℃; (9)Storage Temperature: -40 to 125℃.

Features

KAC-9618 features: (1)Video or snapshot operations; (2)Progressive scan and interlace read out modes.; (3)Programmable pixel clock, inter-frame and inter-line delays.; (4)Programmable partial or full frame integration; (5)Programmable gain and individual color gain; (6)Horizontal & vertical sub-sampling (2:1 & 4:2); (7)Programmable digital video response curve; (8)Windowing; (9)External snapshot trigger & event synchronisation signals; (10)Auto black level compensation; (11)Flexible digital video read-out supporting programmable: polarity for synchronisation and pixel clock signals, leading edge adjustment for horizontal synchronization; (12)Programmable via 2 wire I2C compatible serial interface; (13)Power on reset & power down mode.

Diagrams

KAC-9618 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KAC-9618EVAL-KIT
KAC-9618EVAL-KIT

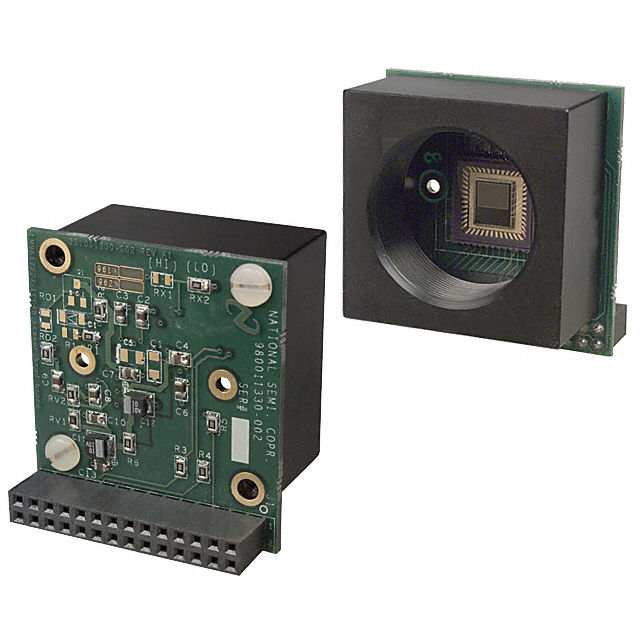

KIT EVALUATION SENSOR KAC-9618

Data Sheet

Negotiable
KAC-9618/HEADBOARD
KAC-9618/HEADBOARD


HEADBOARD FOR KAC-9618

Data Sheet

Negotiable

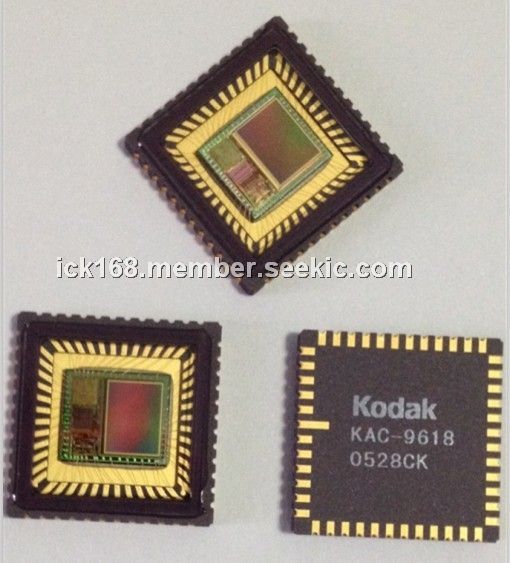

KAC-9618
KAC-9618

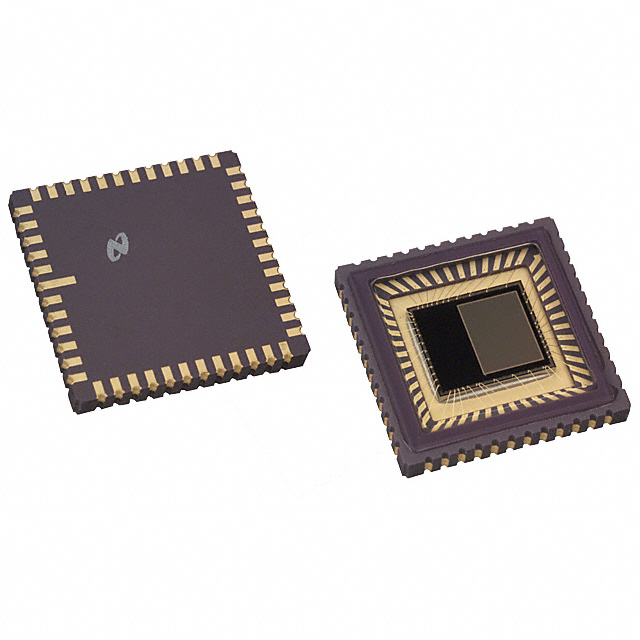

IC SENSOR IMAGE VGA MONO 48-CLCC
