Product Summary
The JAN1N5419-SEN is a rectifier. The JAN1N5419-SEN is designed to meet the need for high speed, power rectifiers in military high-rcl power supplies.
Parametrics
JAN1N5419-SEN absolute maximum ratings: (1) Maximum Average D.C. Output Current @ TA = 55℃ : 3.0A; (2) Maximum Average D.C. Output Current @ TA = 100℃ : 2.0A; (3) Non-Repetitive Sinusoidal Surge Current (8.3ms) : 80A; (4)Operating Temperature Range : -65℃ to +175℃; (5)Storage Temperature Range : -65℃ to +200℃; (14) Thermal ResistanceθJL @ L=3/8" : 20℃/W.
Features
JAN1N5419-SEN features: (1) Qualified to MIL-S-19500/411; (2) PIV : to 600V; (3) Controlled Avalanche.

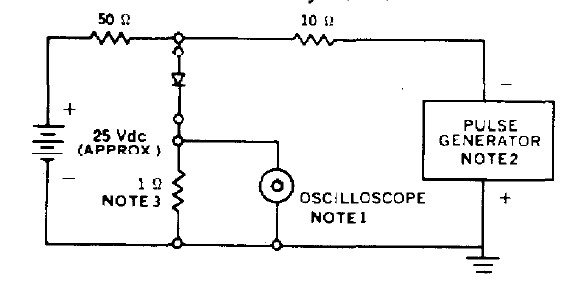

Diagrams
