Product Summary

The 40HFR120 is a standard recovery diode. Typical applications of the 40HFR120 are battery charges, converters, power supplies, machine tool controls, welding.

Parametrics

40HFR120 absolute maximum ratings: (1)IF(AV)@ TC 140 ℃: 40 A; (2)IFSM @50Hz 570 A, @ 60Hz 595 A; (3)I2t @50Hz 1600 A2s, @ 60Hz 1450 KA2s; (4)VRRM range: 1400 to 1600 V; (5)TJ: -65 to 160 ℃.

Features

40HFR120 features: (1)High surge current capability; (2)Stud cathode and stud anode version; (3)Leaded version available; (4)Types up to 1600 V VRRM; (5)RoHS compliant; (6)Designed and qualified for multiple level.

Diagrams

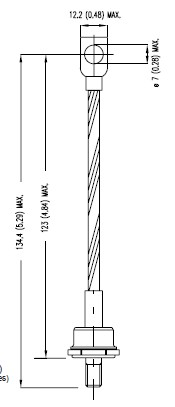

40HFR120 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

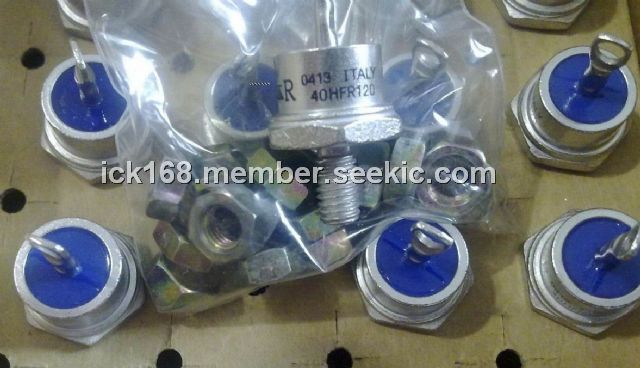

40HFR120
40HFR120

DIODE FAST REC 1200V 40A DO-5
Data Sheet
